NK Series Tyre-mounted Mobile Crusher

01/ Product Introduction

banner

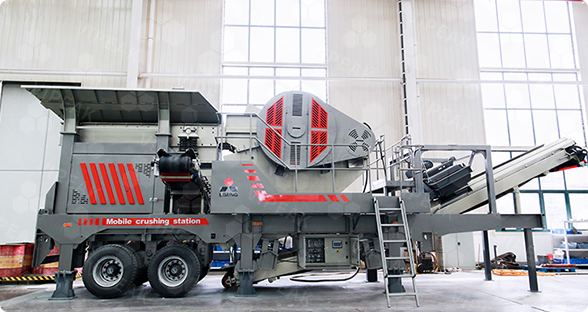

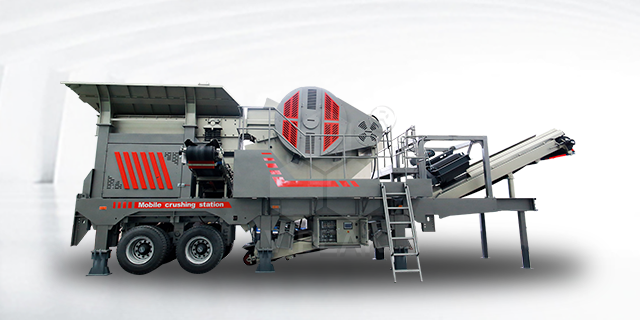

NK series mobile crushing plants have main equipment specially designed for tyre-mounted purpose which are robusthigh-outputenergy-savingeasy to maintain. PE3040 jaw crusher is the most advanced equipment which has long service life big crushing ratio and conveniently adjustable discharging port to meet different finished product size demands.

It has overall modular design and high interchangeability. It can be quickly assembled into the different mobile plants shortening the production time and meeting customer fast delivery requirements.

Compared with traditional tire-mounted plants NK series also has the following advantages:
1. Whole system is completely tire-mounted and can be transported without disassembling which saves erection time on site.
2. Adjustable supporting legs design enables zero-foundation erection.
3. No external hanging belt conveyors no need of cranes or erecting belt conveyors on site which can start production within 24 hours after transportation from Site A to Site B.

02/ Product Features

03/ Technical Parameters

Primary Crushing Mobile Plant
Medium-Crushing MobilePlant
Mobile Sand Making and Screening Plant
 Medium And Fine Crush &screen Moble Plant




Primary Crushing Mobile Plant
Model NK69J NK75J NK90J NK100J NK110J
NK1214CS
NK1213CS
 NK1315CS
Power(kW) 105.3
141.4
 165.2 139.2 193.2 207.9 275.9 275.9
Weight(t) 34 39 66.5 38.4 50.2 39.5 36.3 43
Capacity(t/h) 100-200
120-180
 150-350 150-320 160-450 140-230 150-300 150-300
Feed
hopper
 Volume(m³) 6 6 9 6 9 6 9 9
Width(mm) 2500
2500
 2500 2500 2500 2500 2700 2700
Vibrating
Feeder
 Model FK0936 FK0936 FK1142 FK0936 FK1142 FK0936 FK1142 FK1142
Trough size(mm)
 960x3600
960x3600
 1160x4200 960x3600 1160x4200 960x3600 1160x4200 1160x4200
Crusher Model PE600X900 PE750X1060 PE900X1200 C6X100 C6X110 PFW1214Ⅱ CI5X1213M PFW1315Ⅱ
Max Feeding Size(mm) 480
630
 750 680 760 500 550 600
Power(kW) 75
110
 132 110 160 132 200 200
Iron
separator
 Power(kW)
2.2
 2.2 3 2.2 3 2.2 2.2 2.2
Finished
belt
conveyor
 Belt width(mm) 1000 1000 1200 1000 1200 1200 1200 1200
Discharging height(mm) 3150
3150
 3150 3150 3150 2950 2950 2950
Side exit
belt
conveyor
 Belt width(mm) 500 500 650 500 650 500 500 500
Discharging height(mm) 2400
2400
 2400 2400 2400 2400 2400 2400
Pre-
screening
vibrating
screen
 Power(kW) - - - - - 15 15 15
Screen size（mm） -
-
 - - - 1500x3600 1500x3600 1500x3600
Belt
conveyor
 Transferring belt width(mm) - - - - - 500 500 500
Return material belt width(mm) -
-
 - - - 500 500 500
Belt width over sieve(mm) -
-
 - - - 1000 1000 1000




Medium-Crushing MobilePlant
Model NK160H NK160HS NK300H NK300HS NK1214IS
NK1213I
NK1213IS
 NK1315IS
Power(kW) 200.2
240.7
 288.2 328.7 204.7 232.2 272.7 272.7
Weight(t) 26.5 33.5 36 43 39 29 36 43.2
Capacity(t/h) 65-200
65-200
 110-140 110-140 140-230 150-300 150-300 150-300
Crusher Model HST160 HST160 HST300 HST300 PFW1214Ⅲ CI5X1213M CI5X1213M PFW1315Ⅲ
Max Feeding Size(mm) 350
350
 220 220 250 300 300 300
Model(kW) 132
132
 220 220 132 200 200 200
Pre-
screening
vibrating
screen
 Model(kW) - 15 - 15 15 - 15 15
Screen size（mm） -
1500x3600
 - 1500x3600 1500x3600 - 1500x3600 1500x3600
Vibrating intensity(G) -
4.5
 - 4.5 4.5 - 4.5 4.5
Belt
conveyor
 Feeding belt width(mm) 1000 1000 1000 1000 1000 1000 1000 1000
Transferring belt width(mm) -
500
 - 500 500 - 500 500
Return material belt width(mm) -
500
 - 500 500 - 500 500
Belt width under screen(mm) -
1200
 - 1200 1200 - 1200 1200
Discharging belt width(mm) 1000
1000
 1000 1000 1000 1000 1000 1000
Discharging height(mm) 3150
2950
 3150 2950 2950 3150 2950 2950




Mobile Sand Making and Screening Plant
Model NK8522V NK1145V NK1040V NK150S-2 NK150S-3
NK200S-2
NK200S-3
 NK300S-2 NK300S-3
Power(kW) 253.5
491.2
 451.2 58.2 65.7 69.2 76.7 69.2 67.7
Weight(t) 25 31.4 27.6 25.6 30.3 26.2 30.9 26.6 31.3
Capacity(t/h) 120- 190
250- 360
 264- 342 60- 250 60- 250 70- 350 70- 350 70- 450  70- 450
Sand
making
machine
vibrating
screen
 Model VSI5X8522 VSI5X1145 VSI56X1040  2SKX1560 3SKX1560 2SKX1860 3SKX1860 2SKX2160 3SKX2160
Max Feeding Size(mm) 35
45
 40 250 250 300 300 350 350
Power(kW) 220
440
 400 18.5 22 18.5 22 22 22
Vibrating intensity(G) -
-
 - 4.5 4.5 4.5 4.5 4.5 4.5
Belt
conveyor
 Feeding belt width(mm) 1000 1000 1000 1000 1000 1000 1000 1000 2950
Belt width under screen(mm) -
-
 - 1000 1000 1200 1200 1200 1200
Discharging belt width(mm) 1000
1200
 1200 650 650 650 650 650 650
Discharging height
under screen(mm)		 -
-
 - 4600 4600 4600 4600 4600 4600
Side discharging height(mm)
 -
-
 - - 5138 - 5138 - 5138
Finished product belt
discharging height(mm)
 3150
3150
 3150 3690 3690 3690 3690 3690 3690




Medium And Fine Crush &screen Moble Plant
Model NK160H-2M NK300H-2M NK1214I-2M NK1213I-2M NK1315I-2M
NK8522V-2M
NK1040V-2M
 NK1145V-2M
Power(kW) 164.2
259.2
 164.2 239.2 239.2 259.2 488.5 488.5
Weight(t) 31.5 40 42 39.6 46.6 37 40 43.6
Capacity(t/h) 65-200
110-400
 140-230 150-300 150-300 120-190 264-342 250-360
Crusher Model HST160 HPT300 PFW1214Ⅲ CI5X1213M PFW1315Ⅲ VSI5X8522 VSI6X1040 VSI5X1145
Max Feeding Size(mm) 350
220
 250 300 300 35 40 45
Power(kW) 132
220
 132 200 200 220 400 440
Vibrating
screen
Screen size(mm)
 1500×6000 1800×6000 1500×6000 1800×6000 1800×6000 1800×6000 2100×6000 2100×6000
Power(kW) 22
22
 22 22 22 22 22 22
Under
screen
belt
conveyor
 Belt width under screen(mm) 1000 1200 1000 1200 1200 1200 1200 1200
Discharge height(mm) 5100
5300
 5100 5390 5390 5000 5200 5200
