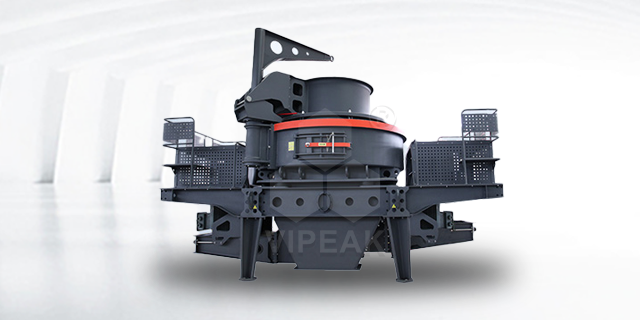

6X Series Vertical Shaft Impact Crusher

01/ Product Introduction

6X series vertical shaft impact crusher absorbs many years of R&D experience. It help artificial sand manufacturers move toward large-scale and centralized production to meet national requirements for environmental protection and production capacity.

02/ Product Features

New Design
Four-port impeller structure improves passing through rate and crushing efficiency
Update Processes Lower Costs and Increase Profits
Stone hit stone" working mode reduces the uses of wearable parts and lowers production costs. New impeller structure lengthens the service life of the impeller
Special Design Quality Assurance
Transmission part adopts special sealing structure to prevent oil leakage from bearing cylinder. Imported bearings are used to advoid transmission problems.
Easy Maintenance
Newly-added hoisting device facilitates equipment maintenance saves labor and time. Simple machine frame effectively prevent material of high moisture from blocking the machine.

03/ Technical Parameters

Model		VSI6X8015	VSI6X9026	VSI6X1040	VSI6X1150	VSI6X1263
Capacity	Crushing	91- 97	167- 179	264- 283	344- 368	454- 486
Capacity	Shaping	109- 117	200- 215	317- 342	413- 442	545- 583
Maximum feed size(mm)	Crushing	≤ 30	≤ 35	≤ 40	≤ 45	≤ 50
Maximum feed size(mm)	Shaping	≤ 40	≤ 45	≤ 50	≤ 55	≤ 60
Main shaft speed(rpm)		1300- 1700	1200- 1500	1100- 1400	1000- 1300	900- 1200
Power(kW)		150	264	400	500	630
Dimension(L×W×H)(mm)		4100×2280×3360	4640×2380×3500	4880×2560×3780	5500×2750×3950	5700×2980×4190
Hydraulic lubrication station	Power(kW)	0.75
	Safety	Automatic stop working when weak oil flow or low hydraulic pressureAir cooling systemStart heating system automatically in winter.
	Flow capacity	4-16L
	Oil tank heater power	4kW
Weight(t)	Rock on rock	14.3	17.7	20.5	10	12.6
Weight(t)	Rock on iron	16	20	23.3	11.2	14.1

Any change of technical data shall not be advised additionallyThe weight and dimensions shall be subject to the real object.
