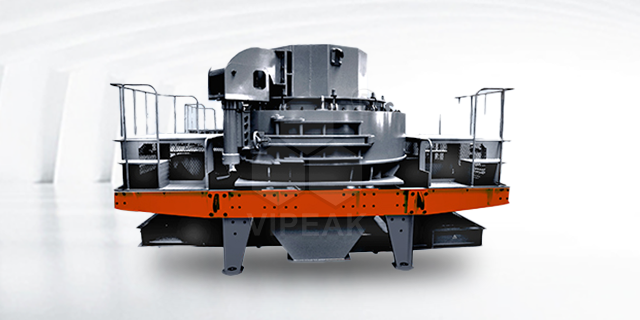

VSI Crusher
(Sand Making Machine)

01/ Product Introduction

The unique hydraulic open top system can make it convenient and quick to remove upper cover Even one person can also easily accomplish it and thus shortening the maintenance downtime.

Simple hoisting device can make it convenient for users to lift rotor and bearing housing assembly make maintenance more conveient at same time saved the cost and time of maintenance.The unique thin oil lubrication system can adjust automatically the supply of lubricating oil according to the field usage of machine.And this can greatly save the labor time and make the machine keep the best working condition.The key parts of the machine adopt high quality alloy material and are equipped with the bearings of world famous manufacturers.

02/ Product Features

High Seal Of Observe Door
Components of observation door adotps rubber sealing devices makes the seal more reliable.
The New Design Of Rotor
AssemblyCompletely new combined rotors design which improves production effectively and decreases abrasion.
New Added Bulk Tray
Feeding place of VSI600 new type sand maker is equipped with a bulk material plate can be adjustable angle and install according to feed belt location to make the material can evenly scattered in the feed chamber.
New Added Feed Flow Control Device
At the bottom of feed cavity equips with a movable flow control deviceby adjusting the feed screw outside the cavity to achieve the purpose of adjusting feeding hole size.

03/ Technical Parameters

Model		VSI7611	VSI8518	VSI9526	VSI1140
Capacity (t/h)	cascade and feeding	120~180	200~260	300~380	450~520
Capacity (t/h)	Fully central feeding	60~90	100~130	150~190	220~260
Max. feeding size(mm)	Soft material	< 35	< 40	< 45	< 50
Max. feeding size(mm)	Hard material	< 30	< 35	< 40	< 45
Rotation speed(r/min)		1700~1890	1520~1690	1360~1510	1180~1310
Double motor power(kw)		110	180	264	400
Dimensions LxWxH(mm)		3700×2150×2100	4140×2280×2425	4560×2447×2778	5000×2700×3300
Weight(t)		11.8	14.5	17.8	25.6
Power supply		380V，50Hz
Vibration sensing		Monitoring range: 0.1- 20mm/s continuously adjustable
Thin oil lubrication station	Double oil oumps motor’s power(KW)	2×0.25
	Safty Assurance	Dual oil pump system stabilize oil supply;switch-off automatically without oil flow or oil pressure;air cooling system /water cooling system available;preheating-start engine adopted.
	Dimensions LxWxH	850×520×1270(mm)
	Power of Oil Tank Heater(KW)	2

Note: The production capacity is measured by medium-hardness limestone and is also affected by factors such as the particle size water content and material properties.
