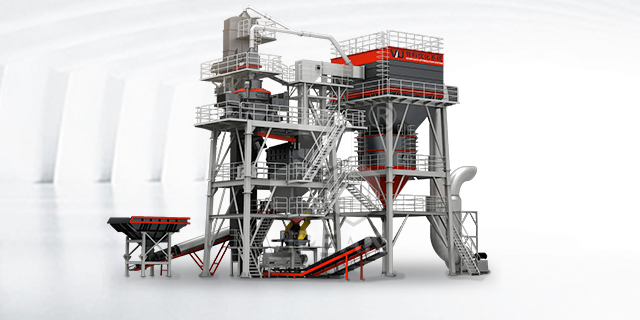

VU Aggregate Optimize

01/ Product Introduction

Raw materials with moisture content of ≤2% and particle size of ≤15mm (which can be cheap and easily got from stone chips and rice stones) are reasonably and efficiently processed by the VU aggregate optimization system reasonable output gradation round particle shapefinished sand with controllable powder content as well as dry and clean high-value-added stone powder that can be recycled and reused (the applicable range is determined according to the raw material).

02/ Product Features

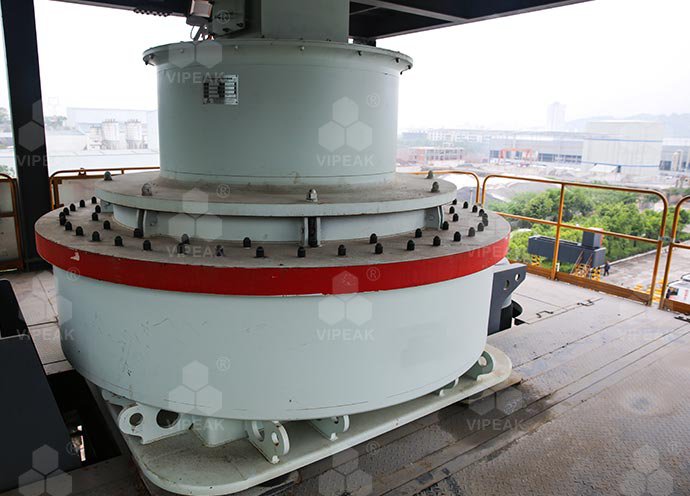

Crushing and Grinding Technology
“Stone-hit-stone” centrifugal crushing is adopted and raw materials are crushed shaped and ground by rotor force to improve final grain shape and enlarge proportion of fine grains.
High-Quality Sand
VU sand grain is round smooth and clean with methylene blue value(MBV) below 0.5. Fineness modulus adjustable between 2.3 and 2.9 and powder content between 5% and13%.
Air Separation
Air separation and screening combined to achieve vibrating distribution linear screening and powder collecting in one chamber.

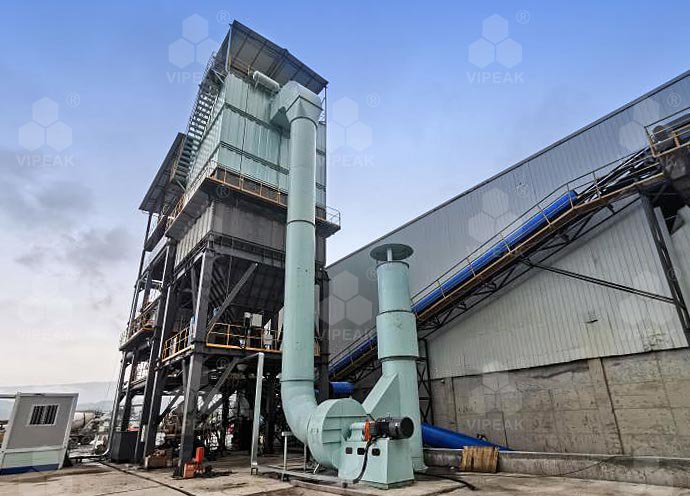

Tower-Layout Design
Tower-layout design is compact and requires less floor area. The whole production line in a closed system without risk of dust spill-out.

03/ Technical Parameters

Model	VU-100	VU-150	VU-300
Feeding size(mm)	0-25	0-25	0-25
Feeding capacity(t/h)	80-100	125.150	240-300
Capacity(t/h)	70-90	110-135	220-270
Stone powder content(%)	3- 15%	3- 15%	3- 15%
Power(kW)	≈681	≈996	≈1974
Dimension（m）L×W×H	29×8×26	-	28×15×24
Main equipment	VU special sand making machine
	Classifier
	Dust Catcher
	Fine sand recovery system
	Bucket elevator
Accessory equipment	Humidifying mixer
	Belt conveyor
	Connecting pipes
	Steel frame for the sand making tower

Note: The capacity shown in this table changes with the changing of system parameters and raw material properties. The moisture content of the raw material is below 2%. For the information on configuration and capacity under specific working conditions kindly consult our company’s technical engineer.
Any change of technical data shall not be advised additionally

Model	VuS301		VuS501
	Sand Making	Aggregates Shaping & Sand Making	Sand Making	Aggregates Shaping & Sand Making
Main machine	VSI6X1040		VSI6X1263
Feeding size(mm)	0-40		0-40
Max feeding capacity(t/h)	100	300	150	550
Powder content (%)	3-15%		3-15%
Power(kW)	≈622		≈966
Dimension L×W×H（m）	21×8×27.5		21×10×30.2
Main Equipment	VUS type vertical shaft impact crusher
	Stone powder separating device
	Environmentally friendly synchronous sorting screen
	Fine sand recovery system
	Dust Catcher
	Bucket elevator
Accessory Equipment	Humidifying mixer
	Connecting pipes
	Belt conveyor
	Steel frame for the sand making tower

table changes with the changing of system parameters and raw material properties. The moisture content of the raw material is below 2%. For the information on configuration and capacity under specific working conditions kindly consult our company’s technical engineer.
