01/ Product Introduction

high profits low costs and energy conservation based on application experience from customer sites in over 130 countries. CI5X series impact crushers are excellent in capacity reliability and maintenance when being applied to crushing rocks with compressive strength NMT 300Mpa and surface moisture NMT 8-10%.

02/ Product Features

High Capacity
High crushing efficiency high capacity and more products in cubic shape
Easy Operation & Maintenance
Simple and easy maintenance less man power short downtime
Long Spare Service Life
Improve the utilization of wearable parts lengthen service life
Stable Performance
Strive for perfection ensure stable equipment operation

03/ Technical Parameters

Model	Rotor size	Feed Opening(mm)	Max.Feeding Size (mm)	Capacity(t/h)	Power(kw)	Dimension(L×W×H)mm	Weight（t）
CI5X1110 (Medium Coarse)	φ1100×1100	1020x820	500	150-200	160-200	2626×2106×1945	11
CI5X1213 (Medium Coarse)	φ1200×1300	1320x880	550	200-300	200-300	2809×2529×2091	16
CI5X1313 (Coarse)	φ1300×1300	1320x1225	800	300-450	300-450	2963×2560×2611	22
CI5X1315 (Medium Coarse)	φ1300×1500	1540x930	600	250-350	250-350	2880×2755×2560	20
CI5X1415 (Coarse)	φ1400×1500	1540x1320	900	350-550	350-550	2995×2790×3090	25
CI5X1520 (Medium Coarse)	φ1500×2000	2040x995	400	400-600	400-600	3390×35200×2790	34
CI5X1524 (Medium Coarse)	φ1500×2400	2516x767	400	500-700	500-700	3419×3955×2825	39
CI5X1620 (Coarse)	φ1600×2000	2040x1630	1100	500-900	500-900	3485×2570×3720	48
CI5X1630 (Medium Coarse)	φ1600×2740	2740x787	400	280-350	600-900	3693×4520×3173	55
CI5X2023 (Coarse)	φ2000×2300	2310x1990	1300	1200-2000	1200-2000	4890×4330×4765	80

04/ Inquiry Us

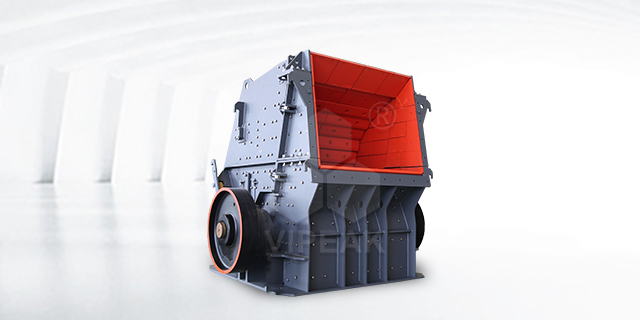

CI5X Impact Crusher
