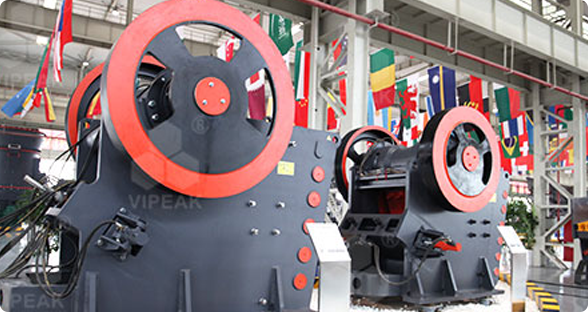

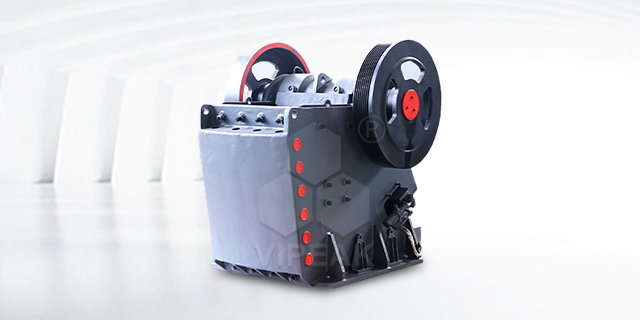

PEW Reinforced Jaw Crusher

01/ Specialty
02/ Advantage
03/ Parameter
04/ Inquiry Us

01/ Product Introduction

PEW Reinforced Jaw Crusher is most suitable for crushing compressive strength material hardness not higher than 280 Mpa:ore rock slag etc. and the most large degree materials must not be more than technical parameter table set rules. JC jaw crusher with its superior performance and stable and reliable quality has won the trust of customers who pursue high quality equipments. It is the first choice of high efficiency and crushing equipment.

02/ Product Features

V-type Structure
Deep cavity V type structure makes higher capacity (compared with normal jaw crusher) and bigger input size of material.
Pull rod Protective Device
Pull rod protective device protect machine from damage load bearing of jaw head and making more safer service life of bearings.
Adjusting Device of Discharge Gate
New design of discharge gate adjusting device convenient quick and safe. compact structure and unique design.
New Oil-way Design
New oil-way design matches up with oil pump; easy to handle and maintain.

03/ Technical Parameters

Model	Feeding Size （mm）	Final Size（mm）	Capacity（t/h）	Power（kw）	Weight（Kg）
PEW860	≤720	100-225	200-500	132-160	32000
PEW1100	≤930	150-275	300-650	185-200	59200
PEW200×1300	≤180	10-30	12-35	30-37	7500
PEW250×1000	≤220	20-40	15-50	30-37	6800
PEW250×1200	≤220	20-40	20-50	37-45	7800
PEW400×600	≤350	35-85	15-70	37-45	8000
