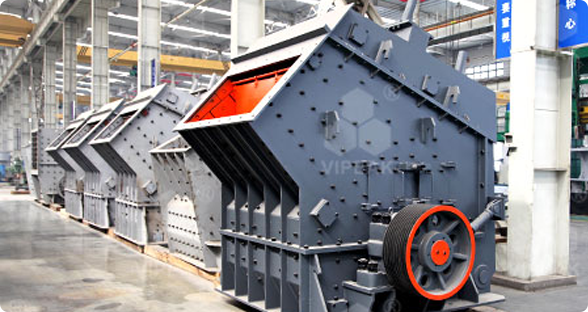

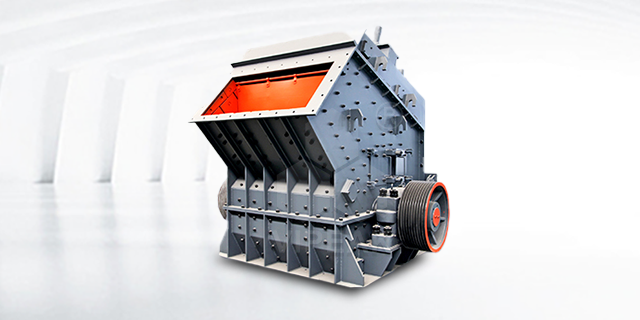

PF Impact Crusher

01/ Specialty
02/ Advantage
03/ Parameter
04/ Inquiry Us

01/ Product Introduction

Impact Crusher is designed with the latest international technology and the world-class manufacturing process. Selection of its main components adopt the most high-end materials. Heavy-duty rotor design and rigorous tests to ensure high quality of the rotor. Therefore Vipeak develops and produces the heavy duty rotor to obtain higher rotational inertia. High wear-resisting material and the best crushing cavity make the excellent crushing performance.

02/ Product Features

Cearing Pedestal
Entirety bearing pedestal cast steel structure can match up with rack. radial strength of bearing pedestal is increased. High bearing capacity makes machine firmand low maintenance ratio.
Heavy Rotor Design
Heavy rotor design is more durable bigger crushing force. Strict quality control high stability longer service life.
High Chrome Hammer Plate
Keyless connection easy to maintain high abrasion resistance big impact. Unique plate hammer fixation device makes maintain and disassembly easier.
Impact Plate Adjusting Device
Adjusting device is optimized easy to adjust. protective device is adjusted and security of the machine is increased.

03/ Technical Parameters

Model	Specification(mm)	Feed Opening(mm)	Max.Feeding Size (mm)	Capacity(t/h)	Power(kw)	Dimension(L×W×H)mm
PF-1007	φ1000×700	400x730	≤250	15-60	37-55	1800x1600x1800
PF-1010	φ1000×1050	400x1080	≤300	50-90	55-75	2340x2007x2500
PF-1210	φ1250×1050	400x1080	≤300	70-130	110-132	2580x2053x2809
PF-1214	φ1250×1400	400x1430	≤300	90-180	132-160	2582x2203x2809
PF-1315	φ1320×1500	860x1520	≤350	120-250	180-260	2582x2403x2809
PF-1520	φ1530x2000	980x2020	≤350	300-600	400	3650x3800x3400
